TC-X TT Series

Available in 5 Flow Sizes with a wide range of options and accessories

Specifically designed for transfering highly corrosive chemicals and for use in clean room
chemical transfer applications such as the manufacture of microelectronic components,
solar panels and semiconductor related applications. Features include totally non-lubricated
technology, fully bolted and torqued pumps with built in design features to resist
material creep and reduce the chance of leaks forming over time. Multiple connection
types available to match your application needs.

Download High Res Printable Versions

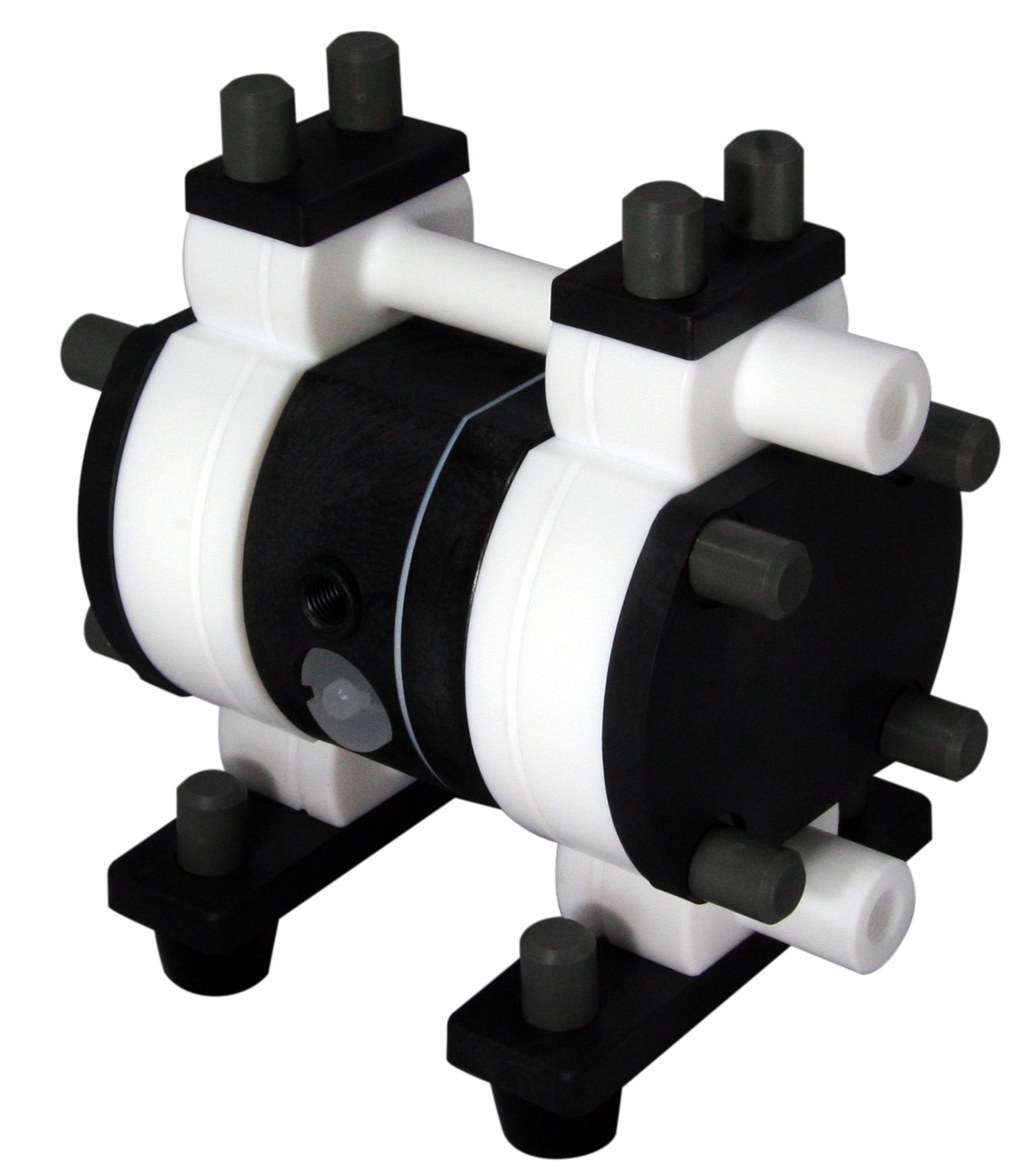

Model TC-X030TT

  • Max Flow Rate: 2.16 GPM (8.2 LPM)
  • Connection Size: 1/4″ (6mm)
  • Connection Type: Threaded
  • Check Valves: Flat
  • Max Slurry Solid Size: 0 mm
  • Wetted Body Materials: PTFE
  • Diaphragm / Valve Materials: PTFE
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

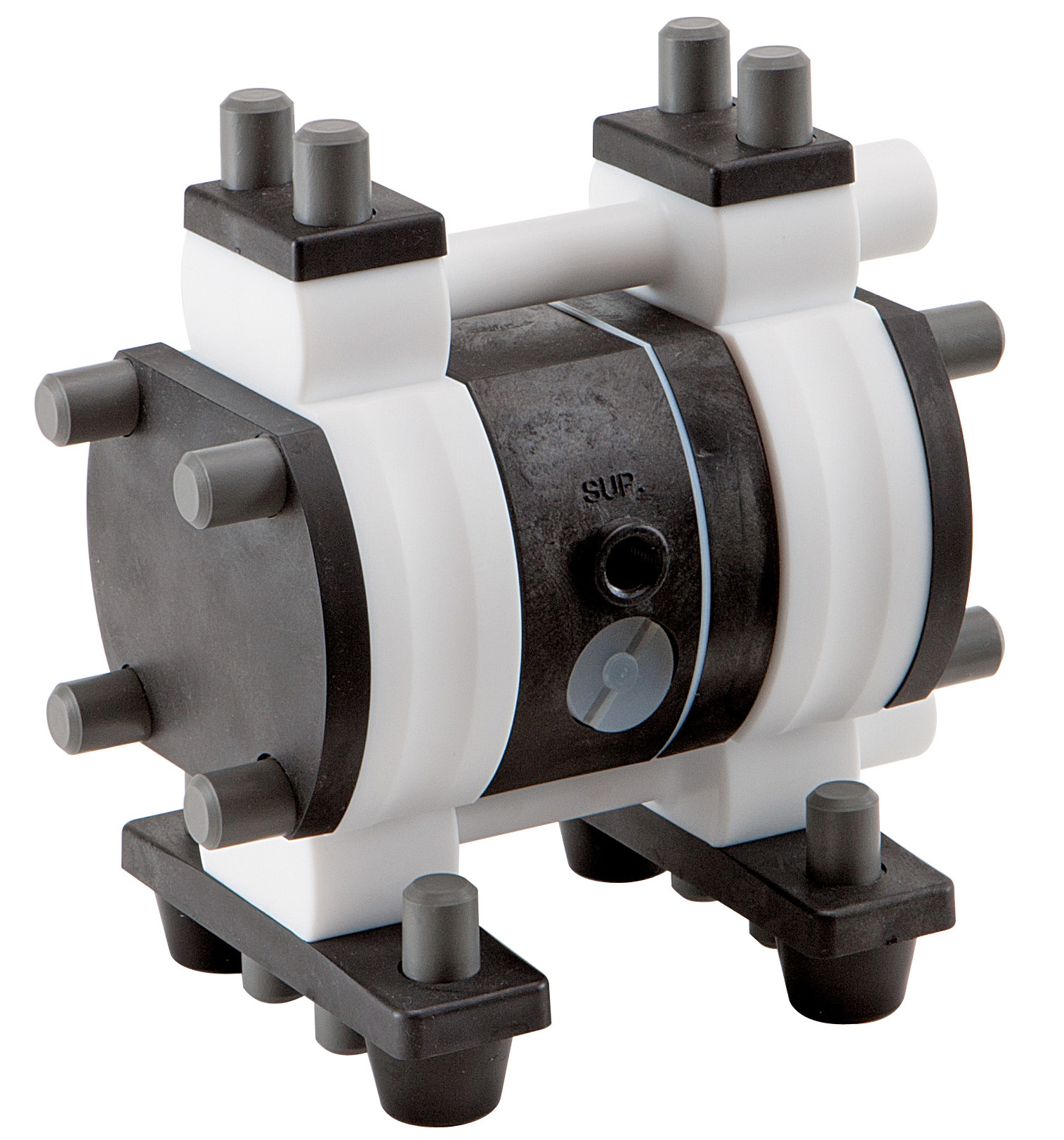

Model TC-X050TT

  • Max Flow Rate: 2.96 GPM (11 LPM)
  • Connection Size: 1/4″ (6mm)
  • Connection Type: Threaded
  • Check Valves: Flat
  • Max Slurry Solid Size: 0 mm
TC-X050TT
  • Wetted Body Materials: PTFE
  • Diaphragm / Valve Materials: PTFE
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

Model TC-X152TT | TC-X152TT-FL

  • Max Flow Rate: 13.2 GPM (50 LPM)
  • Connection Size: 1/2″ (15mm)
  • Connection Type: Thread or Flange
  • Check Valves: Flat
  • Max Slurry Solid Size: 1 mm

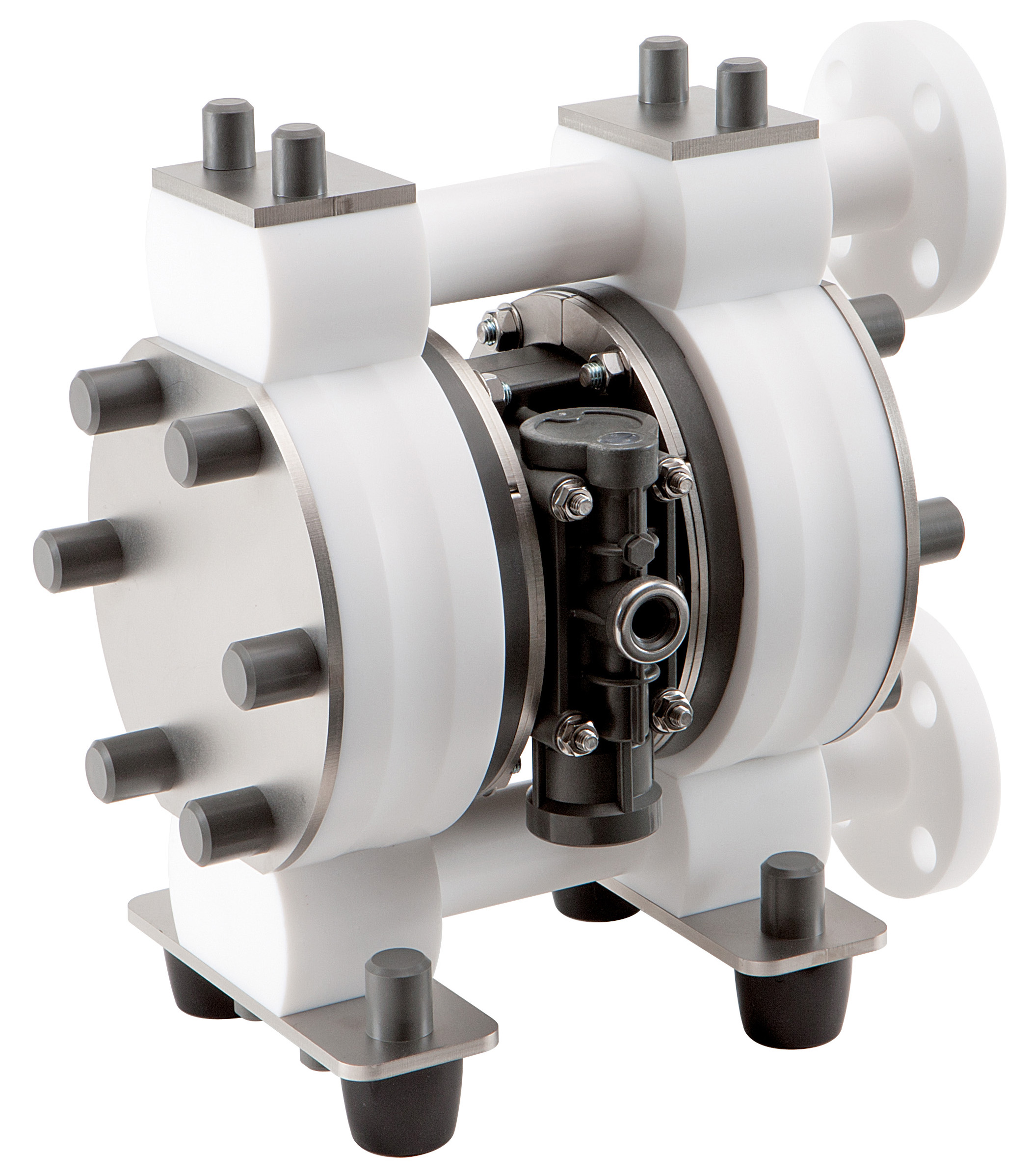

TC-X152TT
  • Wetted Body Materials: PTFE
  • Diaphragm / Valve Materials: PTFE
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

Model TC-X152TT | TC-X152TT-FL

  • Max Flow Rate: 13.2 GPM (50 LPM)
  • Connection Size: 3/4″ (20mm)
  • Connection Type: Thread or Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 2 mm
TC-X152TT
  • Wetted Body Materials: PTFE
  • Diaphragm / Valve Materials: PTFE
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

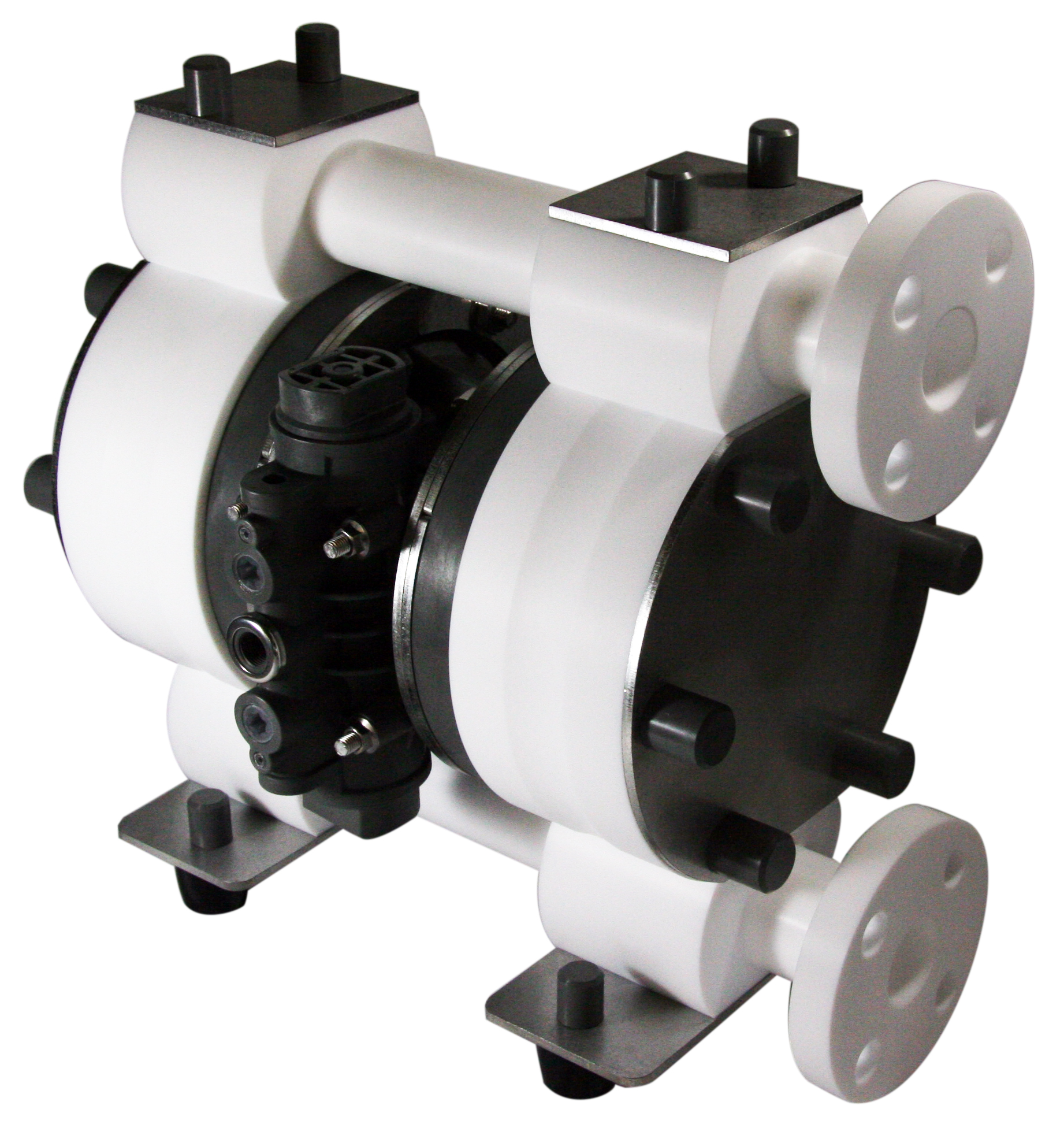

Model TC-X253TT | TC-X253TT-FL

  • Max Flow Rate: 14.8 GPM (56 LPM)
  • Connection Size: 1″ (25mm)
  • Connection Type: Thread of Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 3 mm
TC-X253TT
  • Wetted Body Materials: PTFE
  • Diaphragm / Valve Materials: PTFE
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.
