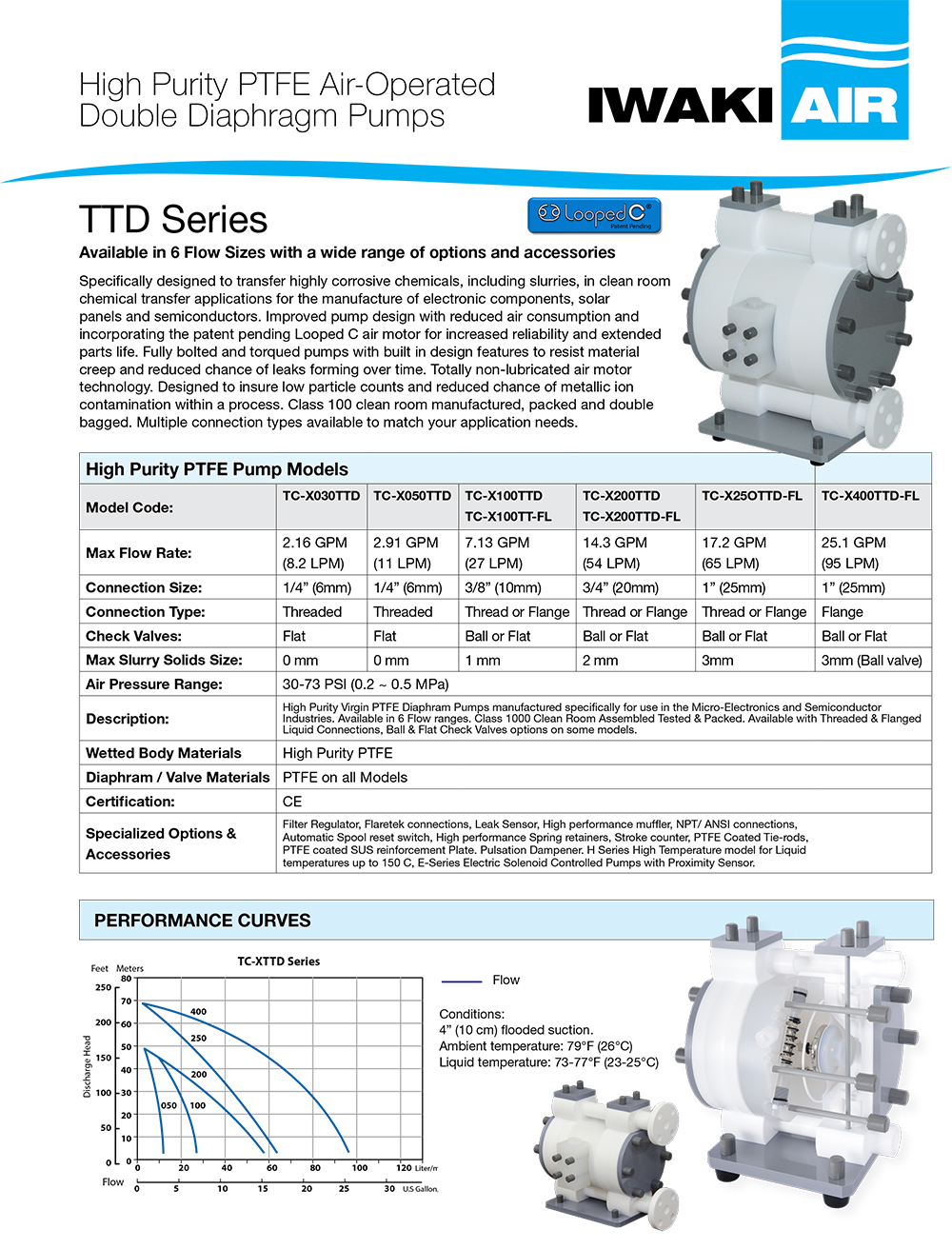

TC-X TTD Series

Available in 6 Sizes with a wide range of options and accessories

Specifically designed to transfer highly corrosive chemicals, including slurries in clean room type chemical transfer processes for the manufacture of electronic components, solar panels and also for the manufacture of semiconductors. Newly improved pump design with reduced air consumption & incorporating the new looped C air motor for increased reliability and extended parts life. Drop-in body dimensions and footprint. Fully bolted and torqued pumps with inbuilt design features to resist material creep and reduced chance of leaks forming over time. Totally non-lubricated technology. Designed to insure low particle counts and reduced chance of metallic ion contamination within a process. Class 100 clean room manufactured, packed and double bagged. Multiple connection types available to match your application needs.

Download High Res Versions

Model TC-X030TTD

  • Max Flow Rate: 2.16 GPM (8.2 LPM)
  • Connection Size: 1/4″ (6 mm)
  • Connection Type: Threaded
  • Check Valves: Flat
  • Max Slurry Solid Size: 0 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

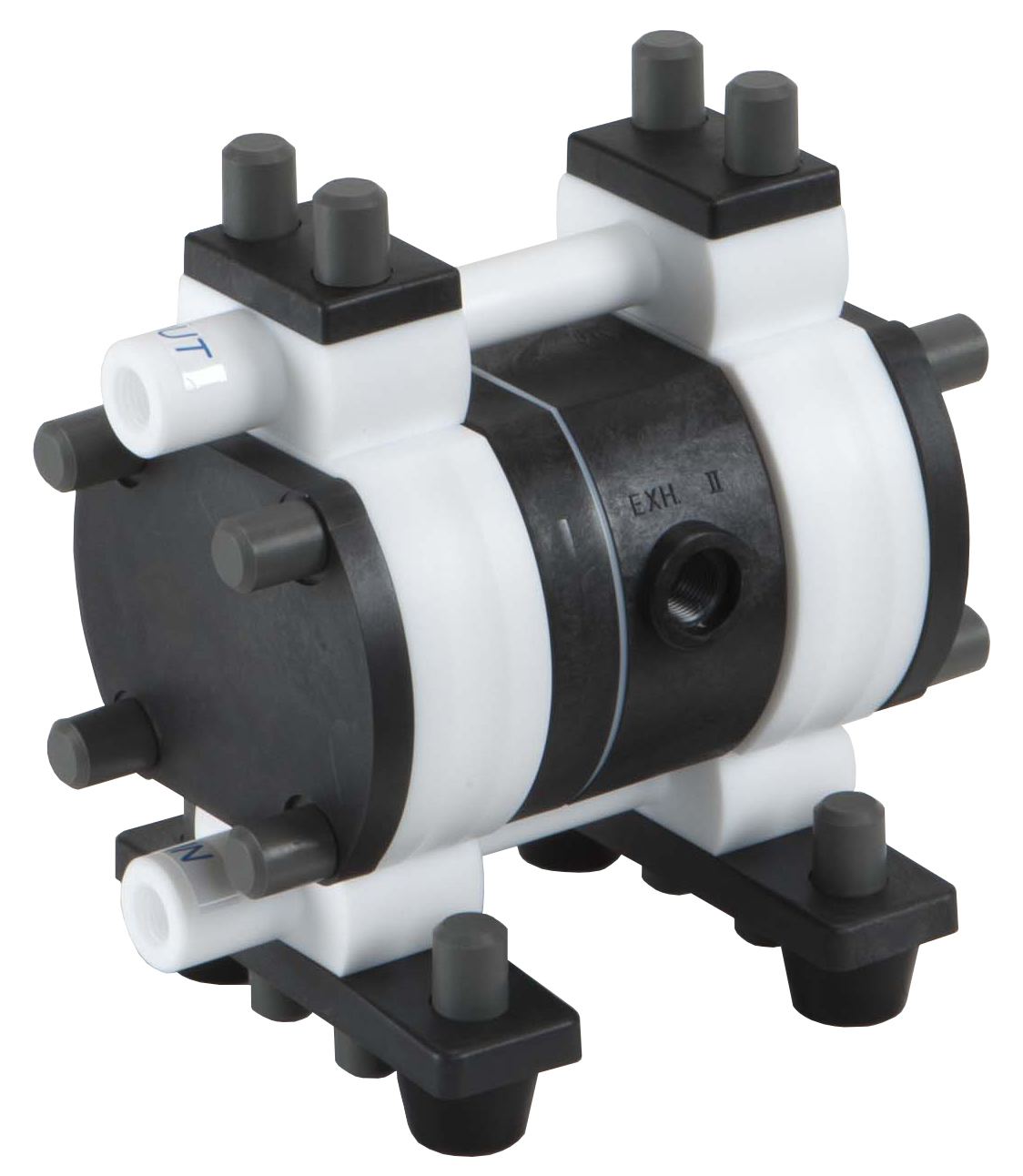

Model TC-X050TTD

  • Max Flow Rate: 2.96 GPM (11 LPM)
  • Connection Size: 1/4″ (6 mm)
  • Connection Type: Threaded
  • Check Valves: Flat
  • Max Slurry Solid Size: 0 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
TC-X050TTD
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

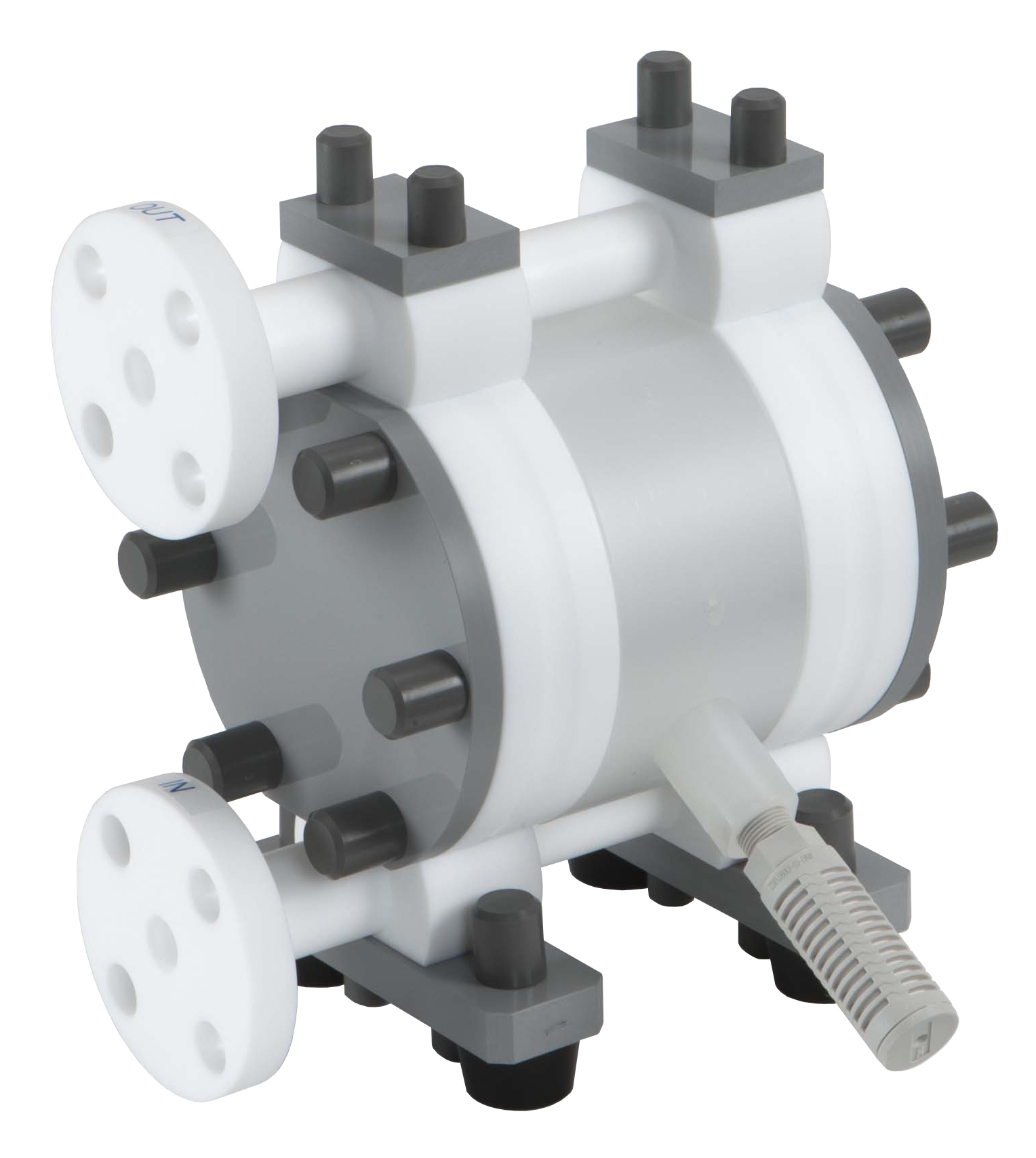

Model TC-X100TTD

  • Max Flow Rate: 7.13 GPM (27 LPM)
  • Connection Size: 3/8″ (6 mm)
  • Connection Type: Thread or Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 1 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
TC-X100TTD
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

Model TC-X200TTD

  • Max Flow Rate: 14.3 GPM (54 LPM)
  • Connection Size: 3/4″ (6mm)
  • Connection Type: Thread or Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 2 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

Model TC-X250TTD

  • Max Flow Rate: 17.2 GPM (65 LPM)
  • Connection Size: 1″ (25 mm)
  • Connection Type: Thread or Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 3 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.

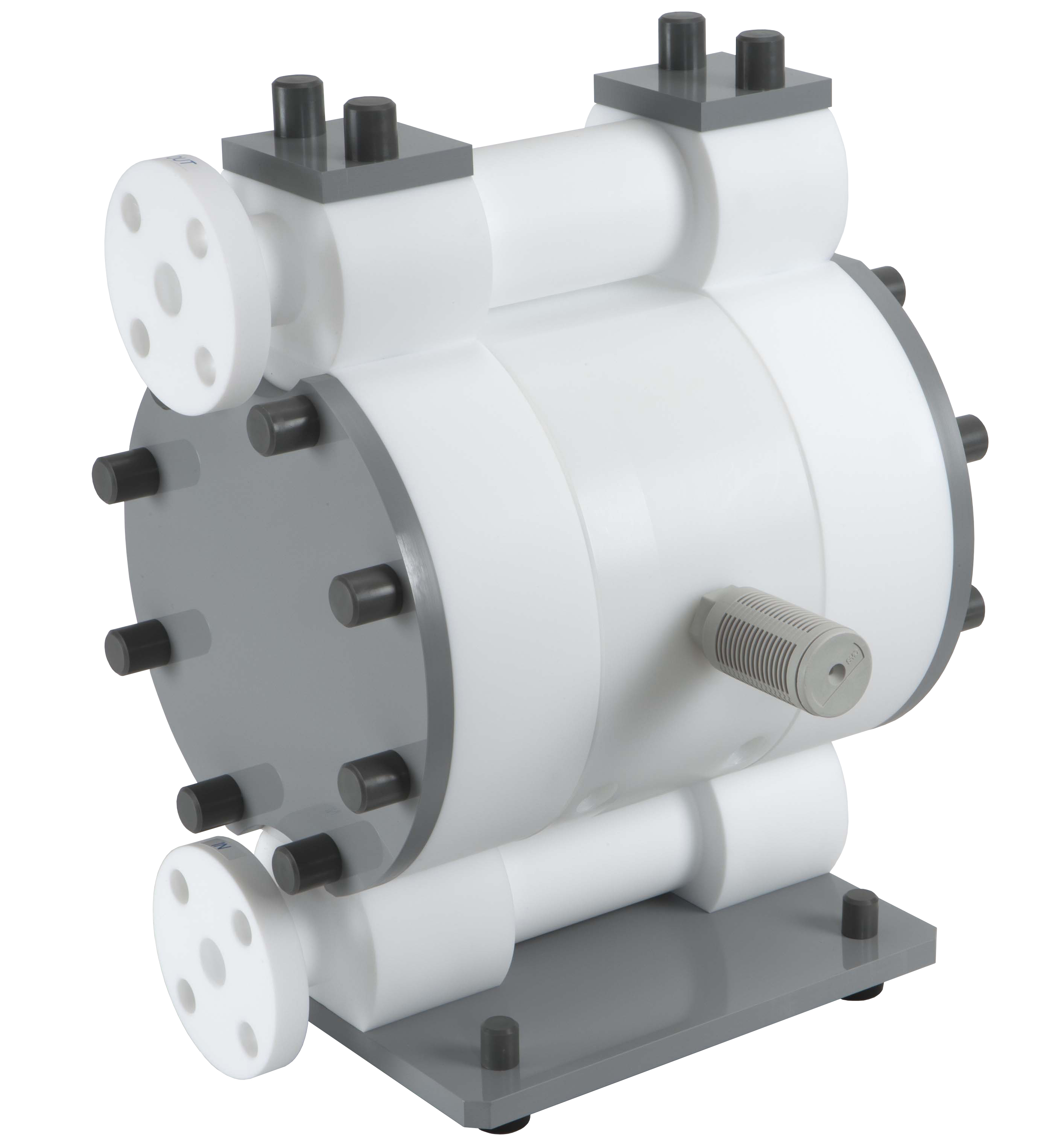

Model TC-X400TTD

  • Max Flow Rate: 25.1 GPM (95 LPM)
  • Connection Size: 1″ (25 mm)
  • Connection Type: Flange
  • Check Valves: Ball or Flat
  • Max Slurry Solid Size: 3 mm
  • Air Pressure Range: 30-73 (0.2 ~ 0.5 MPa)
TC-X400TTD
  • Description: High Purity Virgin PTFE Diaphragm Pumps manufactured specifically for use in the Micro-Electronics and Semiconductor Industries. Available in 6 Flow ranges. Class 1000 Clean Room Assembled Tested & Packed. Available with Threaded & Flanged Liquid Connections, Ball & Flat Check Valves options on some models.
  • Wetted Body Materials: High Purity PTFE
  • Diaphragm / Valve Materials: PTFE on all Models
  • Certification: CE
  • Specialized Options & Accessories: Filter Regulator, Flaretek connections, Leak Sensor, High performance muffler, NPT/ ANSI connections, Automatic Spool reset switch, High performance Spring retainers, Stroke counter, PTFE Coated Tie-Roads, PTFE coated SUS reinforcement Plate, Pulsation Dampener. H Series High Temperature model for Liquid temperatures up to 150 C, E-Series Electric Solenoid Controlled Pumps with Proximity Sensor. Optional Clean room assembly.
