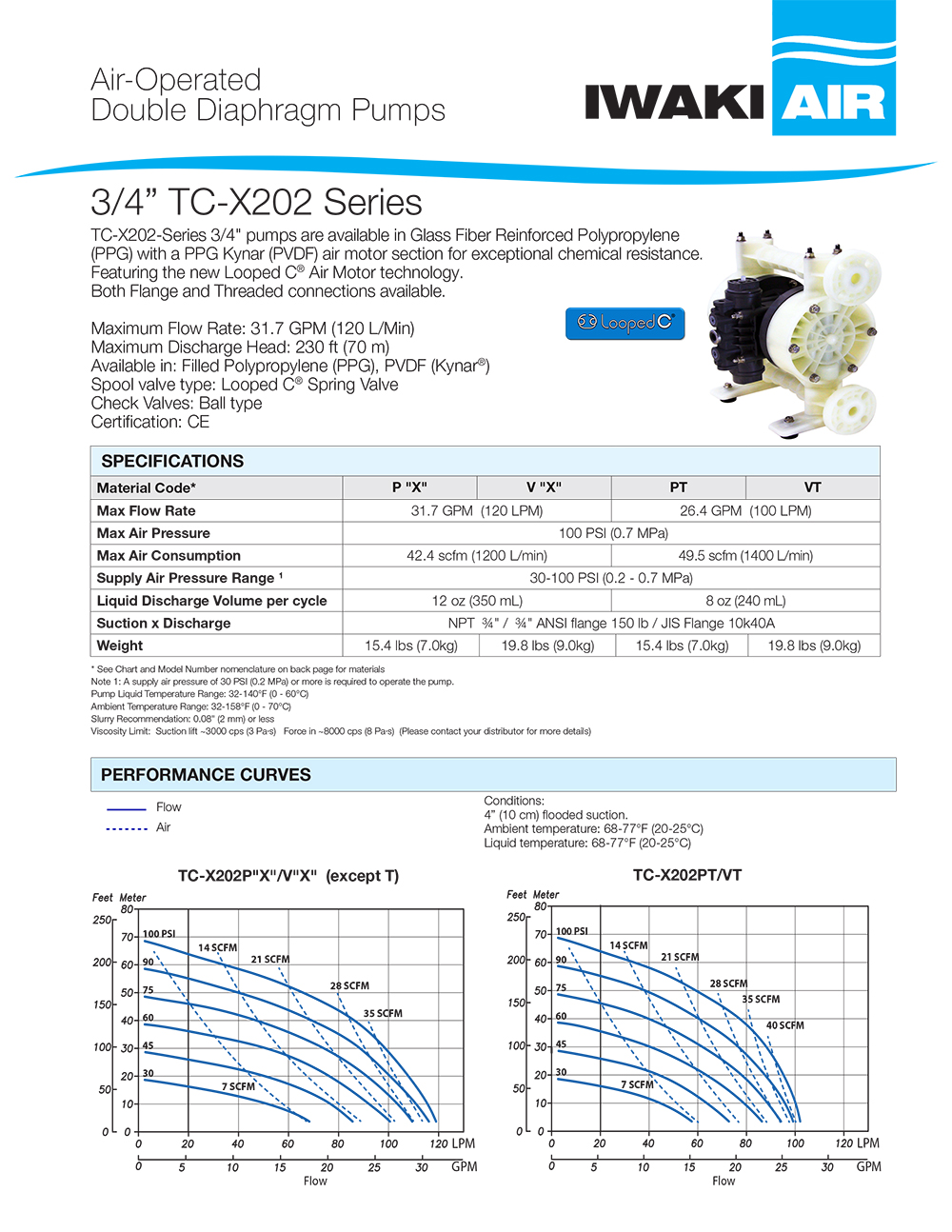

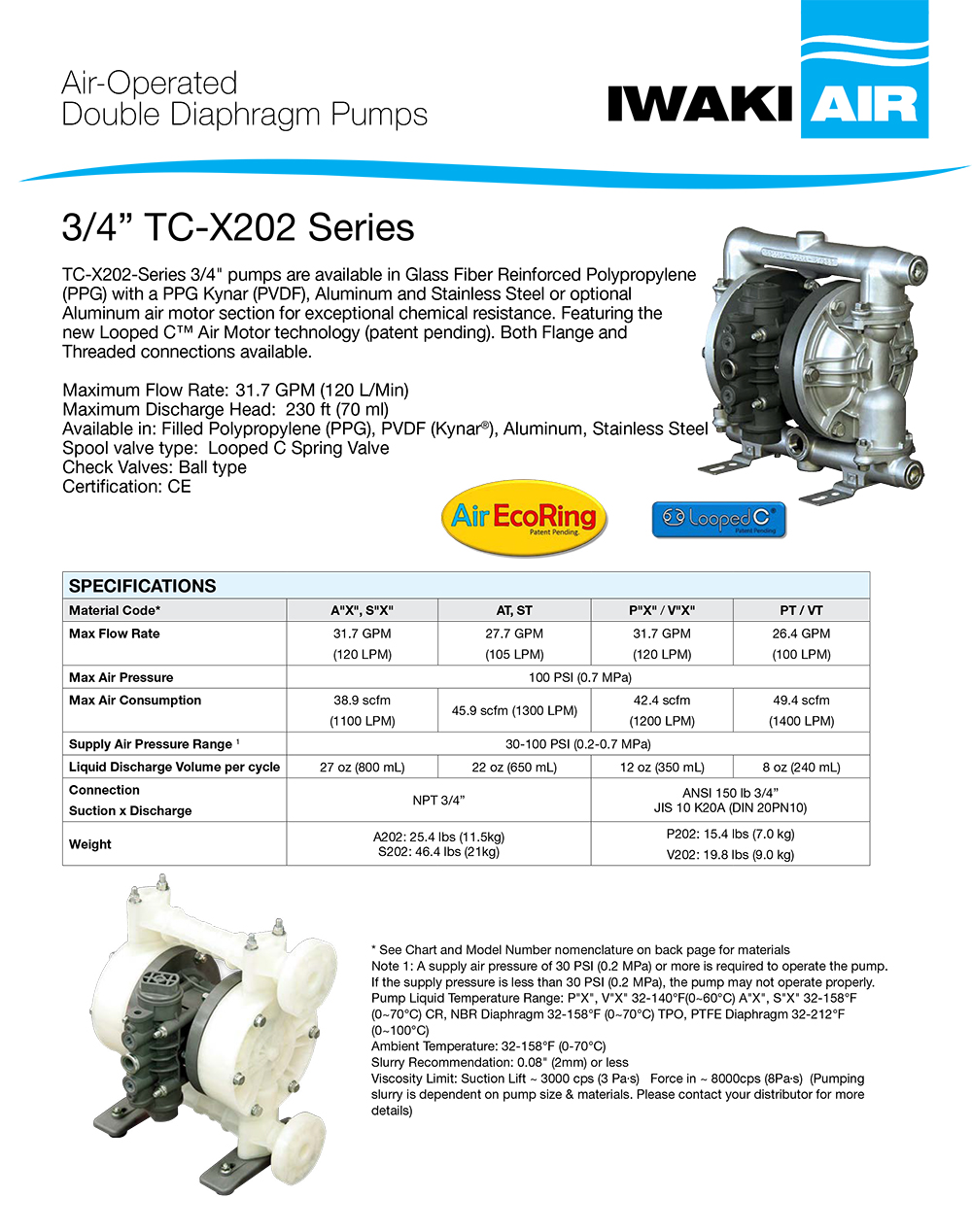

3/4″ TC-X202 Series

TC-X202-Series 3/4″ pumps are available in Glass Fiber Reinforced Polypropylene (PPG) with a PPG Kynar (PVDF) air motor section for exceptional chemical resistance. Featuring the new Looped C™ Air Motor technology (patent pending). Both Flange and Threaded connections available.

Maximum Flow Rate: 31.7 GPM (120 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Filled Polypropylene (PPG), PVDF (Kynar®)
Spool Valve type: Looped C Spring Valve
Check Valves: Ball type
Certification: CE
