1″ TC-X252 Series

TC-X252 pumps are 1″ pumps available in PVDF high chemical resistance. Featuring new Looped C™ Air Motor technology (patent pending). Both flange and threaded connections available.

Maximum Flow Rate: 43.6 GPM (165 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced
Polypropylene & Kynar®
Spool Valve type: C-Spring Valve
  [ View all 1″ Series Pumps ]

TC-X252 Series Air Diaphragm Pumps

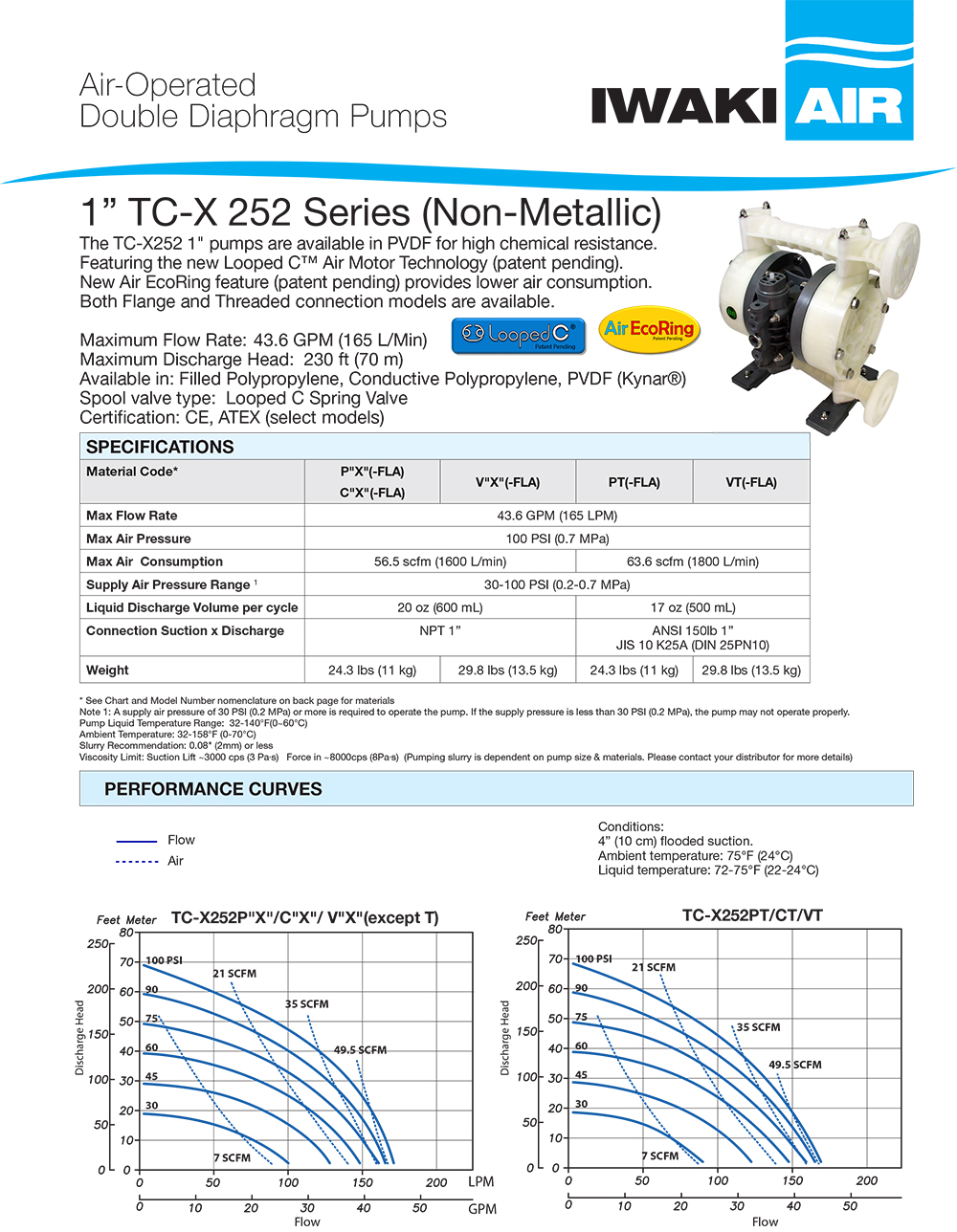

TC-X252 Series AODD Pumps Data Sheet
TC-X252 Series AODD Pumps Manual
TC-X252 Series AODD Pumps Service Book
TCX252PV AODD Pump CurvesTCX252PTVT AODD Pump Curves
TC-X252 Series AODD Pumps Dimensions
1″ TC-X252 Air Diaphragm Pumps
