3″ TC-X801 Series

The TC-X801 Series pumps offer excellent flow rates and an updated heavy duty body
design. The pumps can operate with variable air pressures and are suited for both start/stop and fully continuous duty pumping applications. They can easily handle high pressure and long discharge piping.

Maximum Flow Rate: 251 GPM (950 LPM)
Maximum Discharge Head: 280 FT. (85m)
Available in: Stainless Steel, Aluminum,
Cast Iron, Polypropylene
Spool valve type: Looped C® Spring Valve
Certification: CE, ATEX, FDA (SS models)
TC-X801
[ View all 3″ Pumps ]

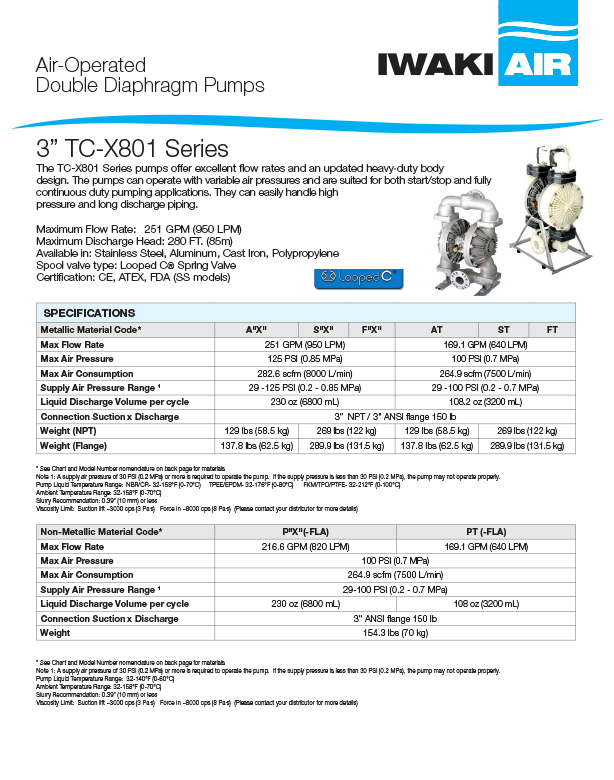

3″ TC-X801 Series AODD Pumps Data Sheet
3″ TC-X801 Series AODD Pumps Manual
3″ TC-X801 Series AODD Pumps Service Book
3″ TC-X801 Series Pumps Curves
3″ TC-X801 Series Pumps Dimensions
TC-X801 Series Air Diaphragm Pumps
