1/2″ TC-X152 Series

The TC-X152 pump is designed to offer exceptional flow rates, high chemical reistance, improved leak prevention and increased reliability. The TC-X152 series offer excellent flow rates, low air consumption and solids handling capabilities. Featuring new Looped C™ Air Motor Technology (patent pending).

Maximum Flow Rate: 15.8 GPM (60 L/Min)
Maximum Discharge Head: 230 FT (70 m)
Available in: Stainless Steel, Aluminum, Pure Polypropylene, Conductive Polypropylene
and PVDF (Kynar®)
Spool valve type: Looped C-Spring Valve
Check Valves: Flat Valves & Ball options
Certifications: CE, ATEX (select models),
FDA (SS models)
[ View all 1/2″ Series Pumps ]
TC-X152 Series AODD Pumps

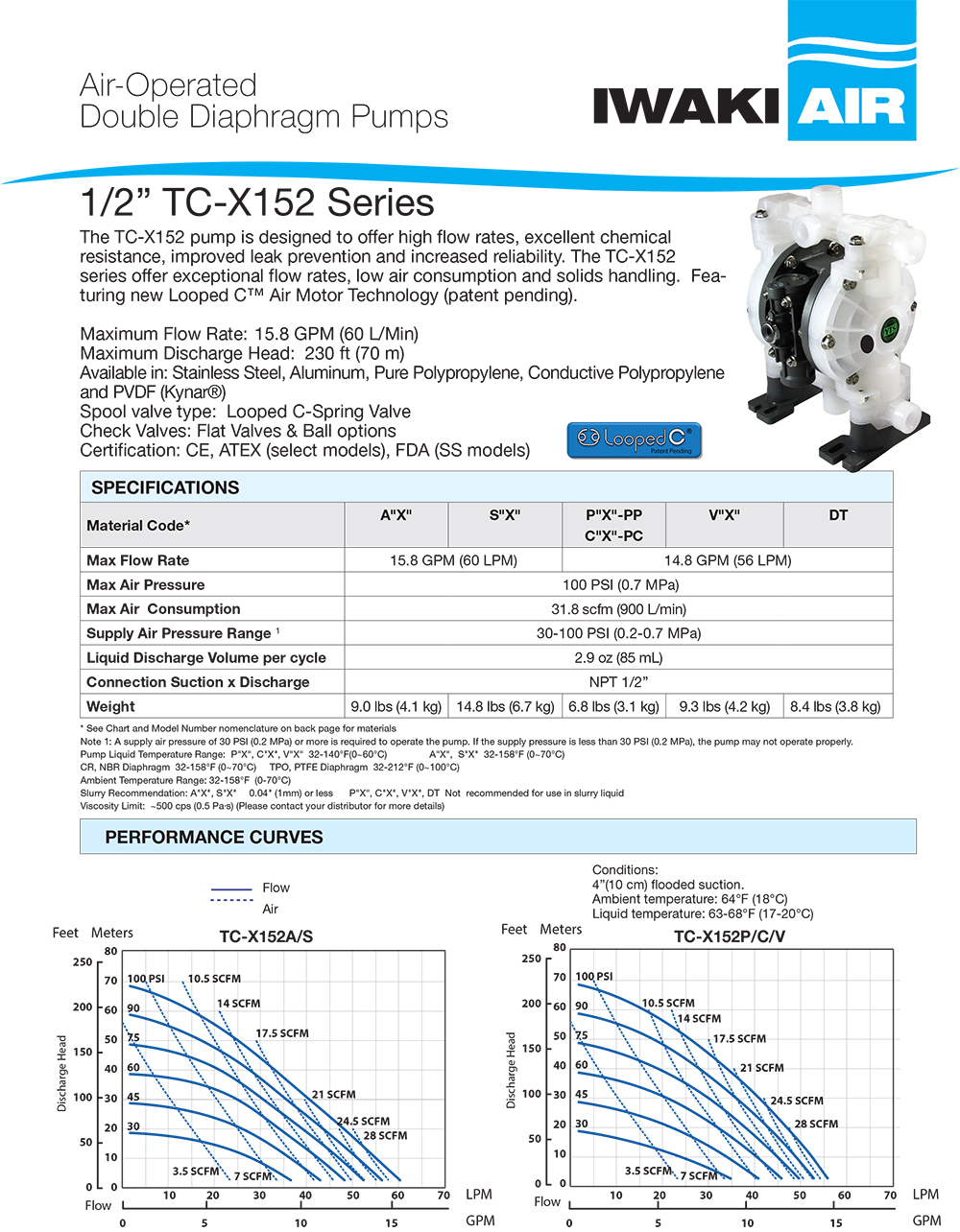

TC-X152 Series AODD Pumps Data Sheet
TC-X152 Series AODD Pumps Manual
TC-X152 Series AODD Pump Service book
TC-X152AS AODD Pump Curves TC-X152PV AODD Pump Curves
TC-X152 Series AODD Pumps Dimensions
TC-X152 Series Air Diaphragm Pumps
